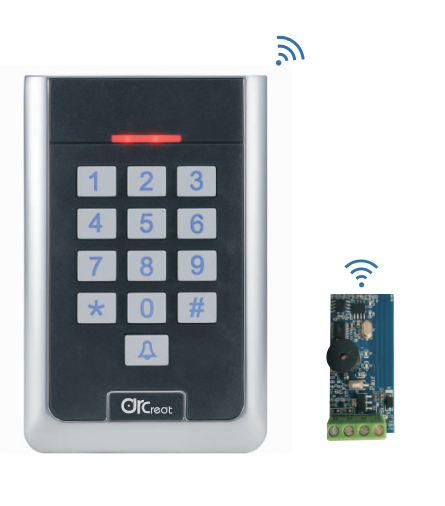

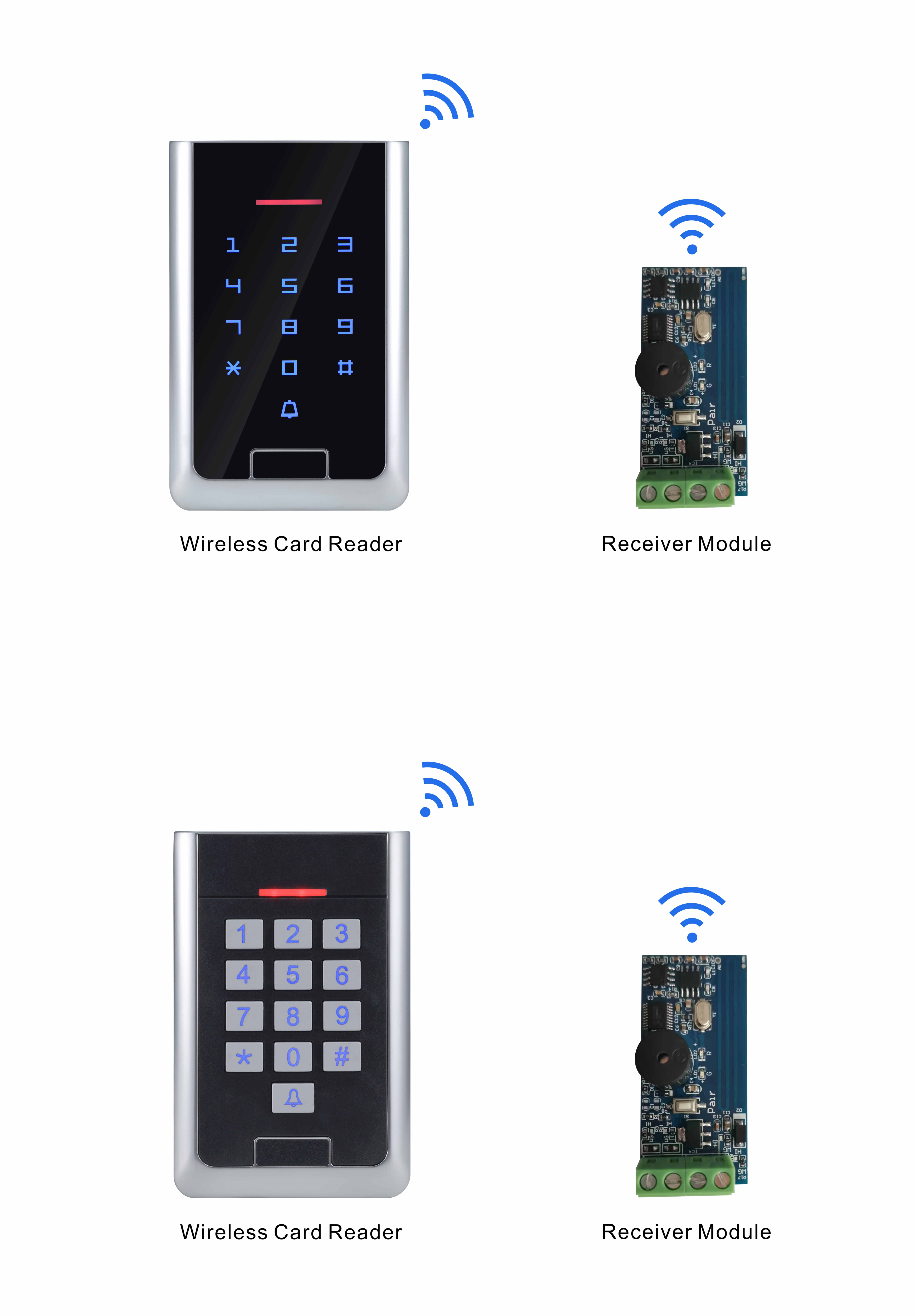

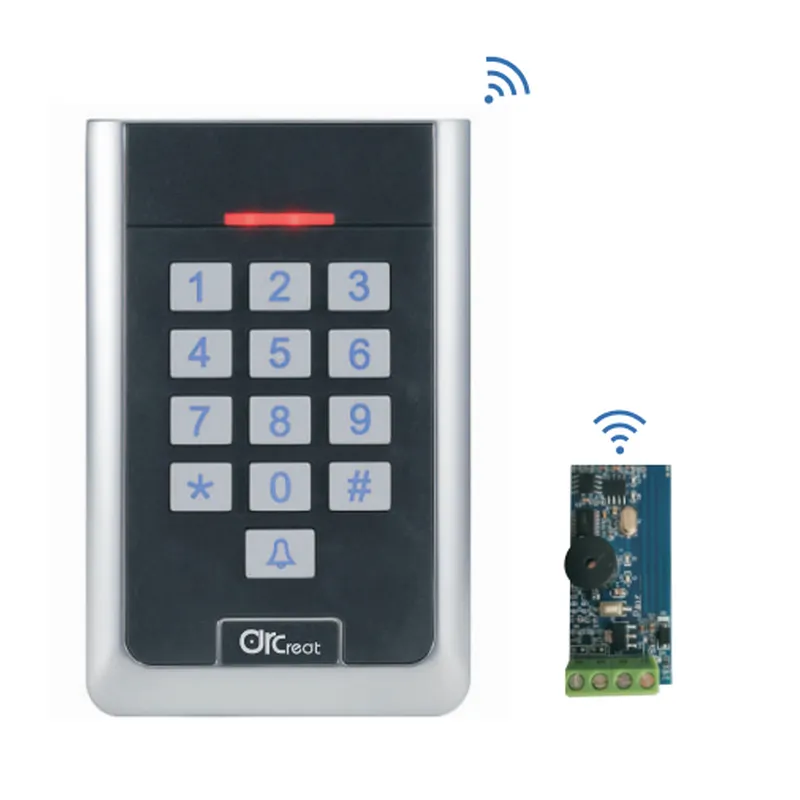

| WR10-K EM/ MF Wireless Card Reader | ||||||||||
| Specifications | ||||||||||
| Input Voltage | DC12V±20% for Receiver | |||||||||
| 3 AAA battery for the outdoor keypad/ | ||||||||||
| Operating Current | Keypad:≤50m | |||||||||
| Battery Life | Battery for keypad : 12 months if 20 times open per day | |||||||||
| Proximity Card | Card Type: 125KHz EM card/ 13.56MHz Mifare card | |||||||||
| Communication Frequency | 433Mhz | |||||||||
| Communication Distance | ≤40m（depends on the environment ) | |||||||||
| Operating temperature | -40~60℃ | |||||||||
| Operating Humidity | 10%-99 | |||||||||
| Dimension | Keypad: L115 x W76 x H25(mm) Receiver Module: L55 x W25 x H13 (mm) | |||||||||
