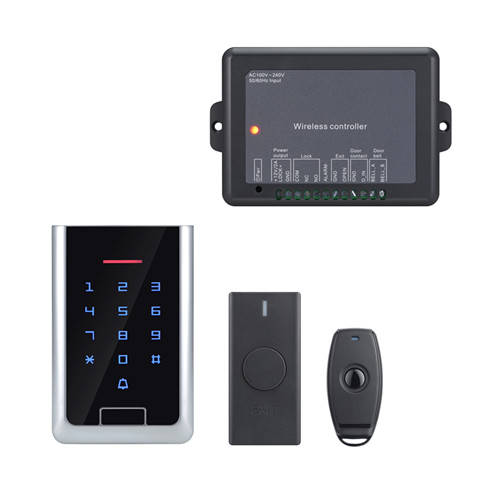

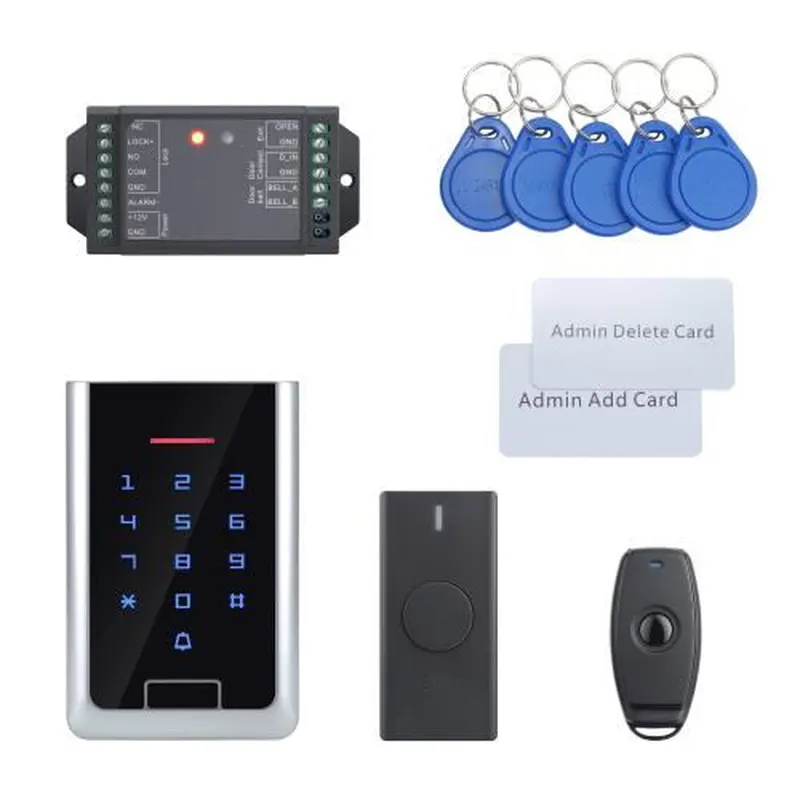

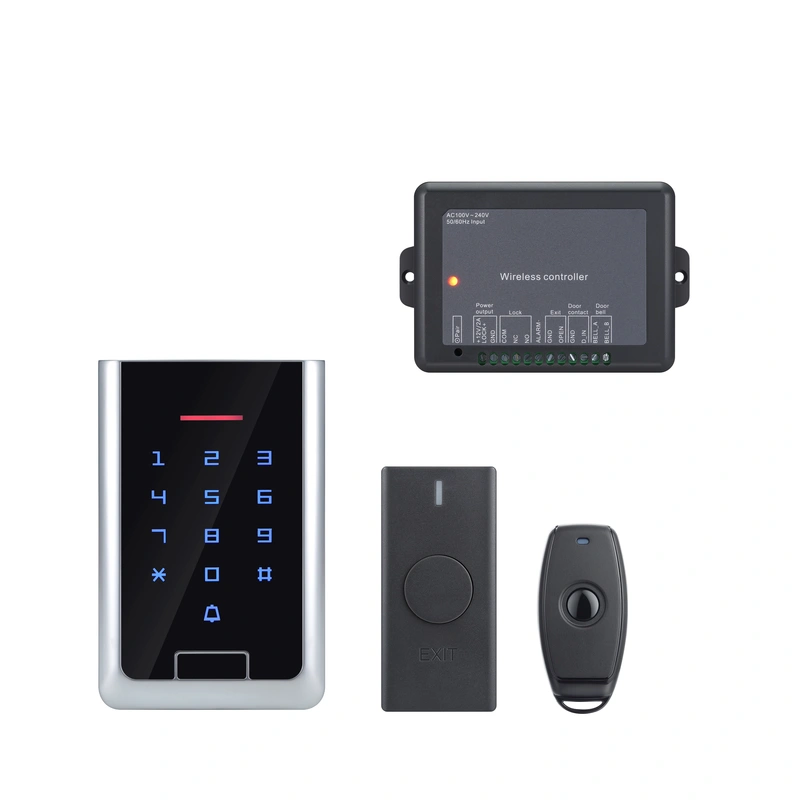

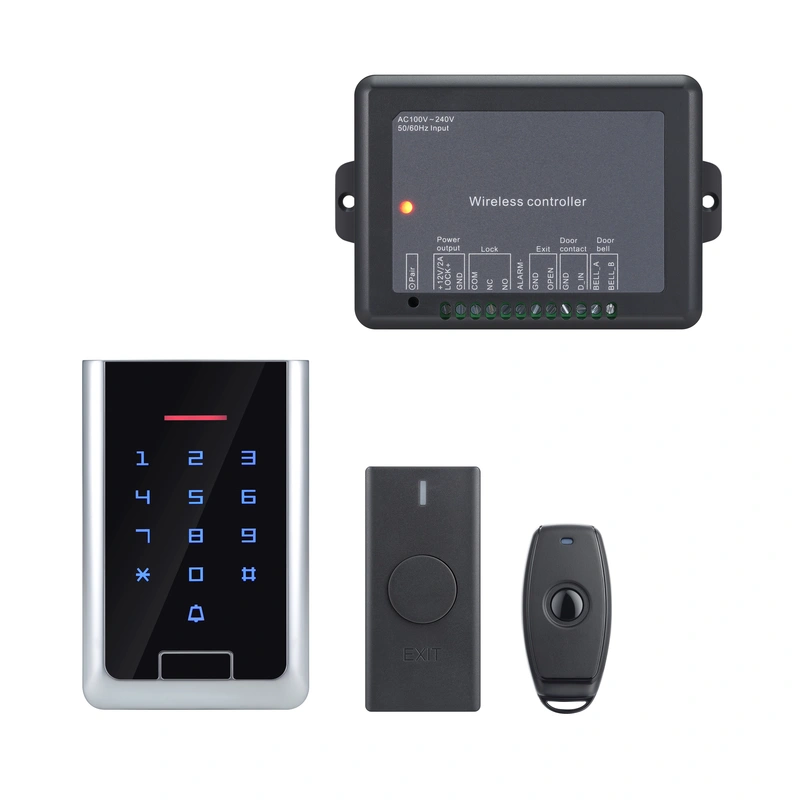

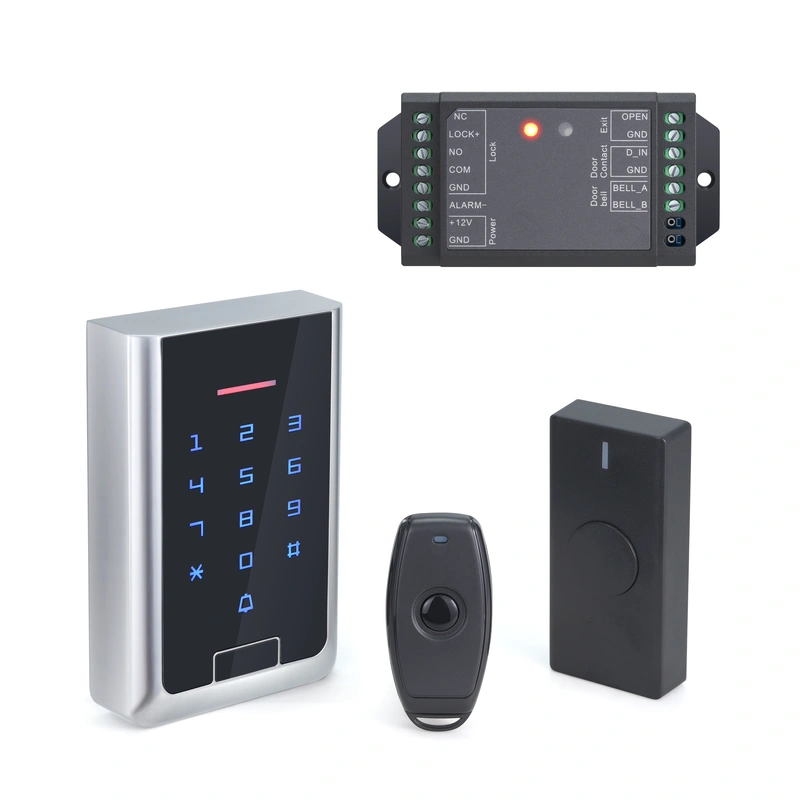

| AW10-T Waterproof Wireless Access Control Kit |
| Specifications |
| Input Voltage | DC12V±10% for the indoor controller |
| 3 AAA battery for the outdoor keypad/2032 lithium battery for the exit button |
| Operating Current | Keypad:≤80mA/Controller:≤50mA/Exit button:≤30mA |
| Battery Life | Battery for keypad & exit button : 12 months if 20 times open per day |
| User Capacity | 1000 users+100 temporary users |
| Proximity Card | EM Card 125Khz |
| Communication Frequency | 433Mhz |
| Communication Distance | ≤30m（depends on the environment ) |
| Operating temperature | -40~60℃ |
| Operating Humidity | Keypad:10%-99%/Controller & Exit button:10%-90% RH |
| Dimension | Keypad: L115 X W76 X H25(mm) Controller:85×50×25mm/Exit button:80×38×15mm |
| Weight | Keypad: 360g (Wide), 300g (Slim), Controller: 62g, Exit Button: 34g |
| Key Features |
| ♦ AW1 is a new generation Pin or/and proximity card waterproof wireless access control kit which allows entry via |
| ♦ 4-8 digits Pin or a proximity EM card or wireless exit button |
| ♦ 433Mhz wireless communication technology and TEA+ rolling codes algorithm |
| ♦ The relay and doorbell is built-in the indoor controller which is more secure |
| ♦ Support 500 users and 100 temporary visitors.Easy management for the place which often have visitors |
| ♦ The relay can be set to access mode or switch mode |
| ♦ Additional functions:anti-tamper,safe mode,external doorbell,external alarm etc. |
| ♦ Low battery alarm |
| ♦ Easy installation with the 3M super glue for the keypad and exit button which solve the problem of complicated |
| ♦ wiring of the traditional access control |
