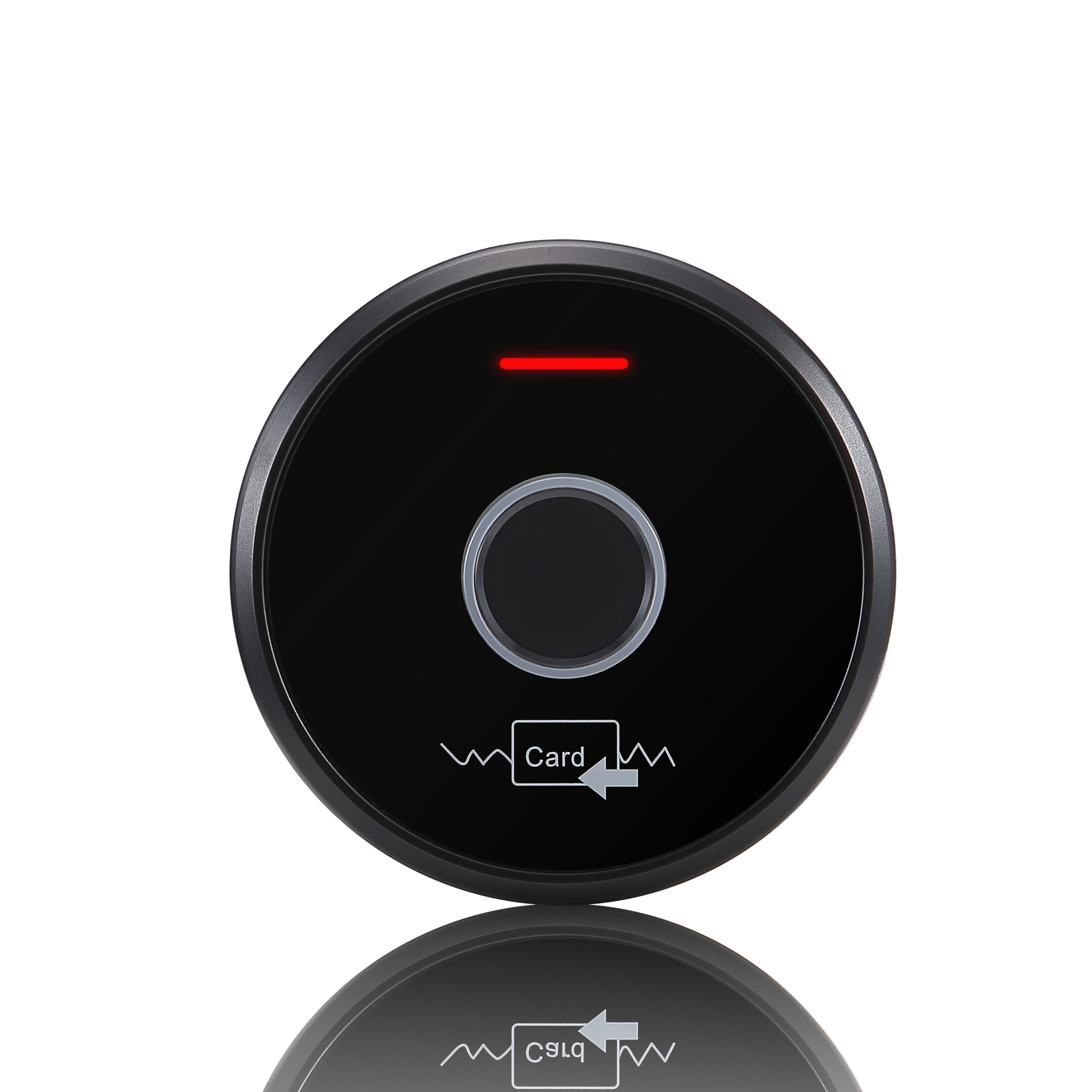

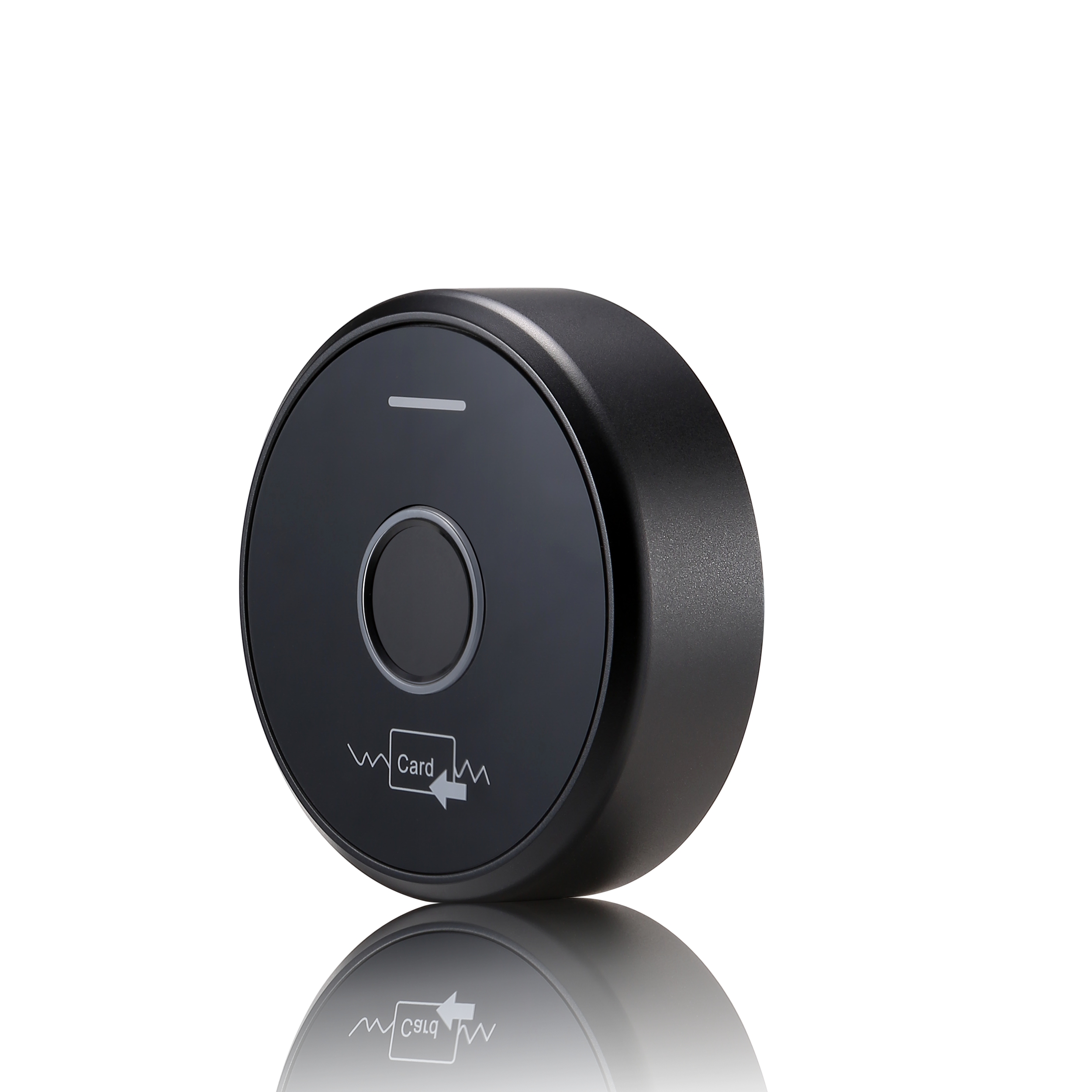

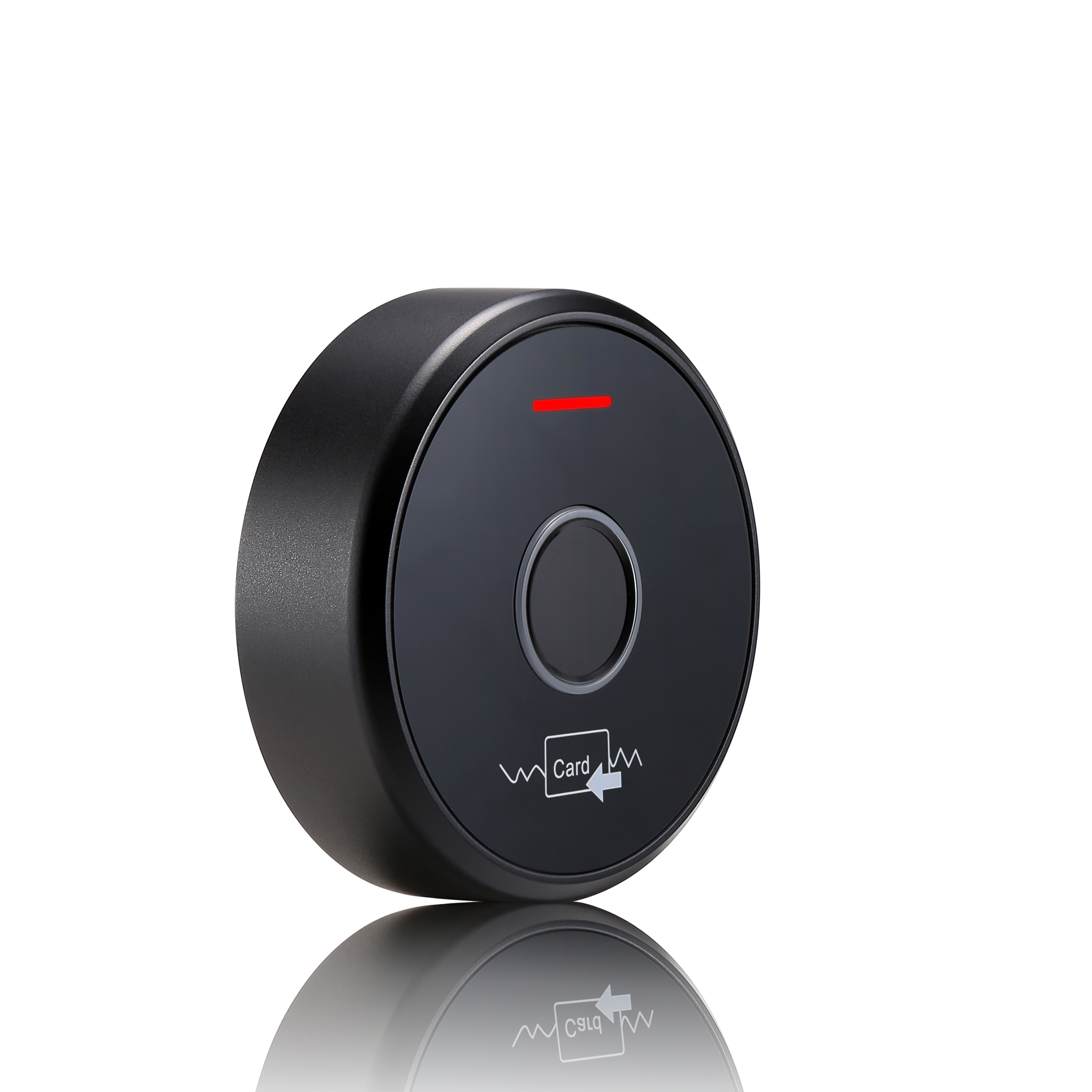

Mini Metal fingerprint access control card reader

· Zinc alloy housing, anti-explosion

· Semiconductor fingerprint scanner

· Waterproof, confirms to IP66

· Allows entry via Fingerprint or proximity card（EM or Mifare or EM & HID )

· Support anti-tamper,door status detection, two door interlock,authority management

· Specially suit for the government,enterprise,bank,smart building,school etc

HF7 Mini Metal Fingerprint Access Control Card Reader
Specifications
Input Voltage				Wide Range DC10-24V
Operating Current				≤150mA
User Capacity				200 fingerprint users & 2800 card users
Proximity Card				EM Card 125Khz/13.56mhz Mifare
Reading range				4-6cm
Wiegand range				Wiegand 26 input & output
Operating temperature				-40~70℃
Operating Humidity				10%-98%
Dimension				63(mm)
