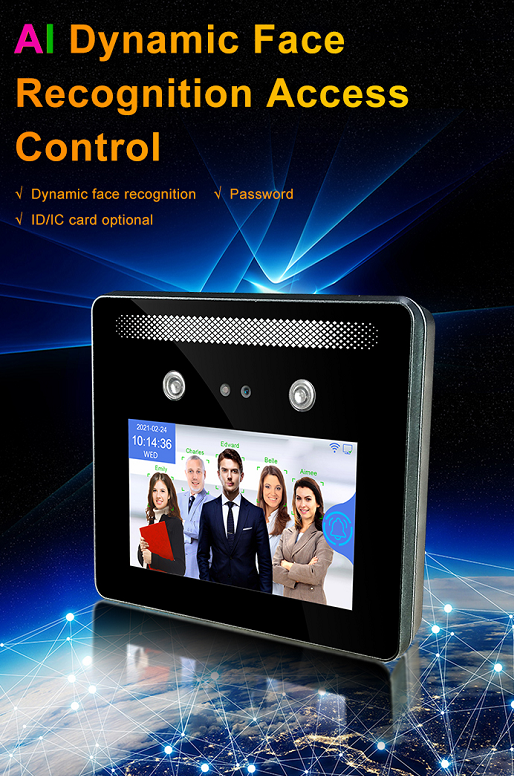

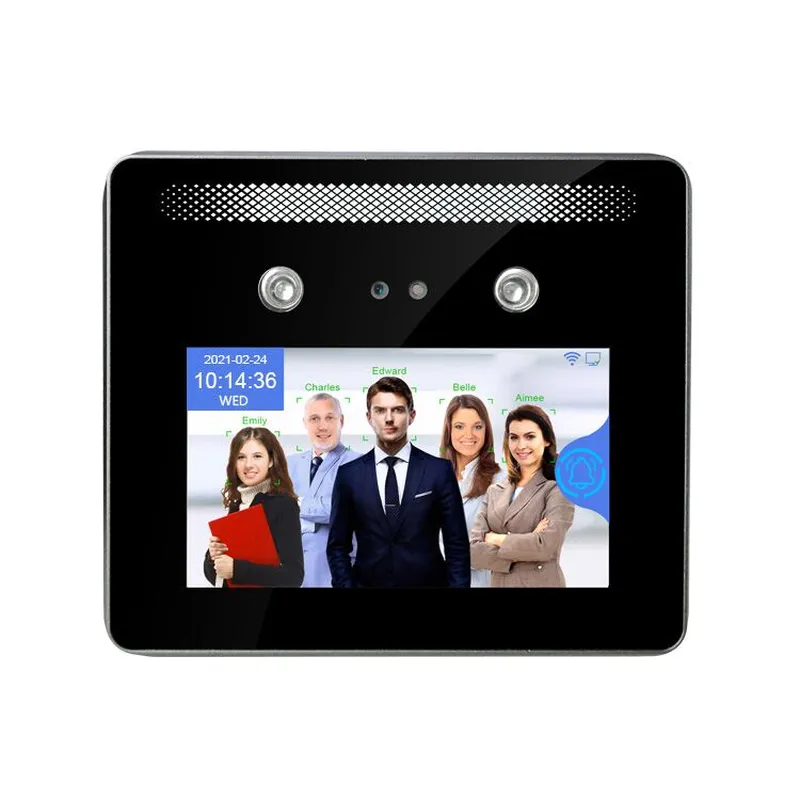

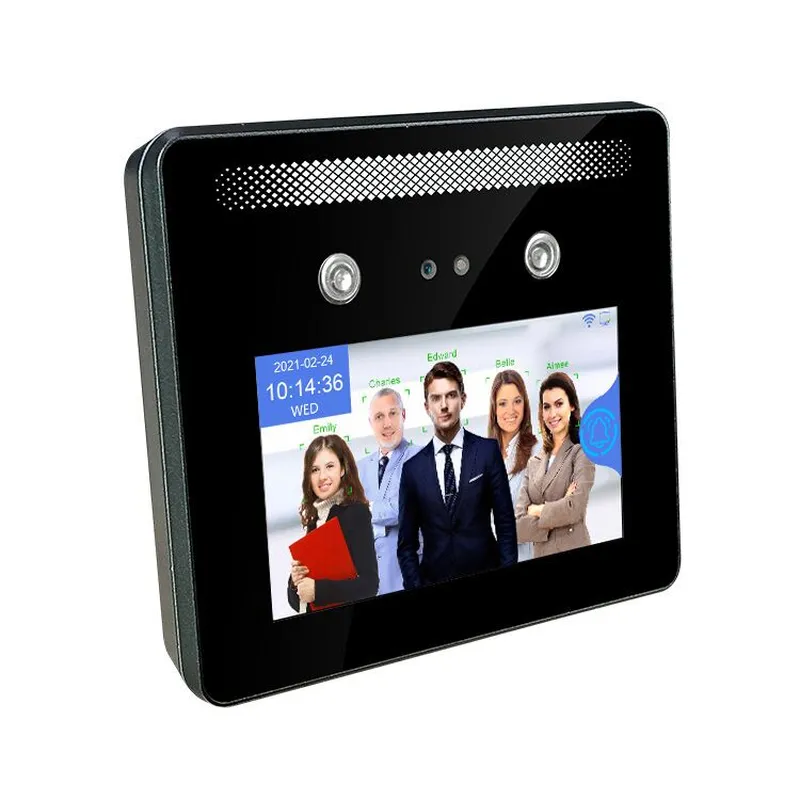

Biometric Access Control Facial Recognition Time Attendance Terminal

5.0 Inch Touch Screen

CPU 1.2G Dual-Core ARM Cortex-A,NPU 0.6T，AI CPU

Support EM ,Mifare card

Face capacity: 5000

Card capacity: 5000

Interface:TCP/IP/Wiegand 26 /USB

DC 12V/2A

Size:155*133*25.5MM

Specifications
Product name	AI05 Dynamic Facial Recognition Time Attendance and Access Control Terminal
Screen	5.0 Inch Touch Screen
Keypad	Touch keypad
Operation system	LINUX 3.10
CPU,NPU	1.2G Dual-Core ARM Cortex-A7
RAM	256M DDR3L
ROM	4G EMMC
Binocular camera	200W pixel high-definition color camera WDR wide dynamic, 200W pixel infrared live camera
Live detection	Dynamic dual-camera anti-counterfeiting, to prevent all kinds of black-and-white, color photos and videos from deception
Logs capacity	500000
Face Registration	Local operation: Enroll face with machine, import user photo with U disk
Face Registration	Software operation: Import user photo to software, capture user photo with camera
Verification	Dynamic face recognition, password, ID(IC card optional)
Face capacity	5000
Card Capacity	5000
Password Capacity	5000 ID card(IC card optional)
Face Recognition Accuracy	99.70%
Recognition Speed	≤0.2s, support single user/multi user(at most 5 users) recognition at same time
Recognition Distance	0.5~2.5 meters (0.5~1.5 meters with live face recognition on)
Prevent Photo	Dual camera anti-counterfeiting, prevent recognition with photo/video
USB	USB2.0x1,Support U disk import/export data
Power supply	DC12V 2A
