EM Card HID Card MIFARE Card Access Control Card Reader

  • Zinc alloy housing, anti-explosion

  • Waterproof, confirms to IP67

  • Three open mode:card/card+Pin/card or Pin

  • Allows entry via 4-8 digits Pin or/and proximity card ( EM card 125Khz )

  • Support anti-tamper,door magnetic detection,alarm etc.

  • Specially suit for the government,enterprise,bank,smart building,school etc.

inquiry

Description


Item Information

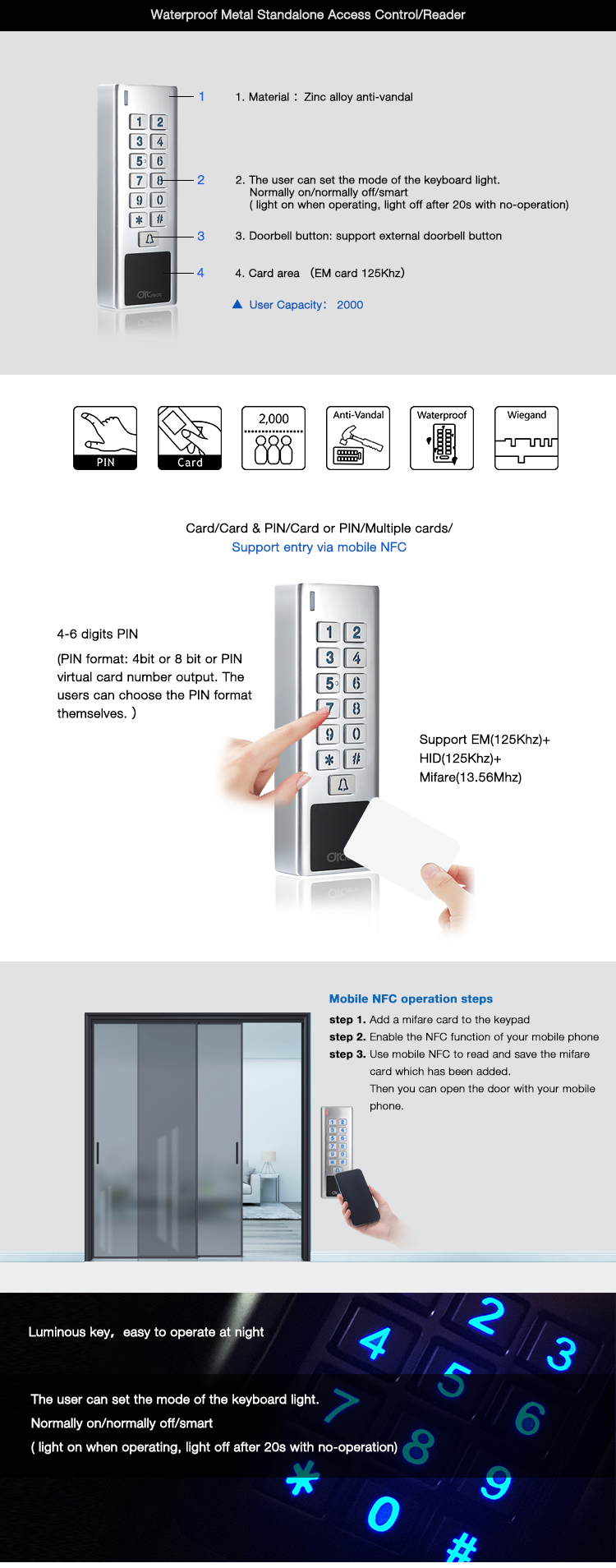

 Waterproof Standalone Access Control/Reader
Specifications
Input VoltageWide Range DC10-24V
Operating Current≤80mA
User Capacity2000 users
Proximity CardSupport 125 KHz EM&HID + 13.56MHz Mifare cards
Reading range2-4cm
Wiegand rangeWiegand 26 input & output
Operating temperature-40~70℃
Operating Humidity10%-98%
Dimension129×44×20mm
Weight0.55kg

详情图 AD8-DCH 1.jpg
