125khz QR code access control card reader

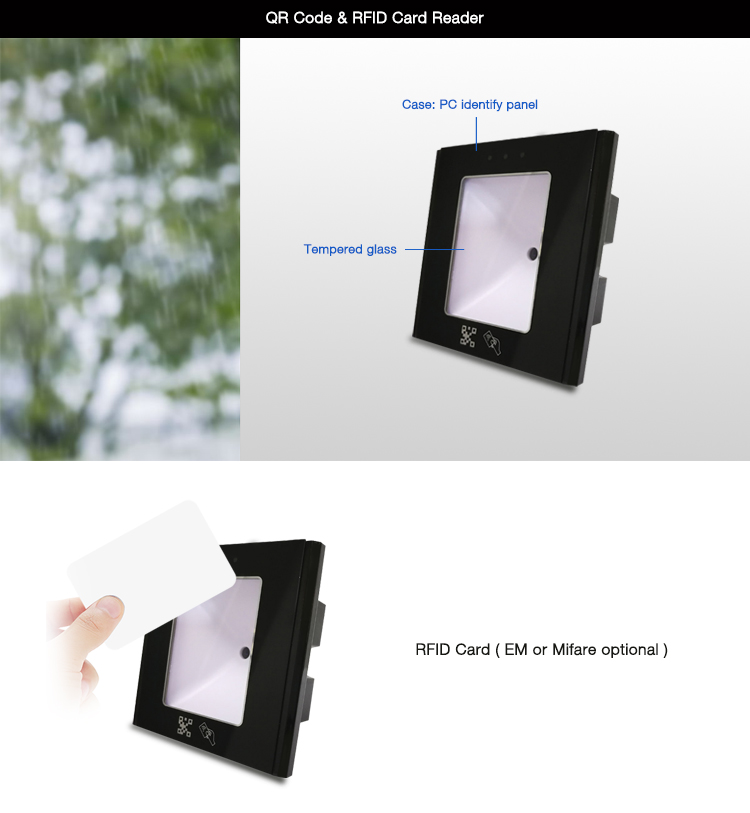

     ·    Material PC identify panel+tempered glass

     ·   Open by proximity card ( ID & Mifare )

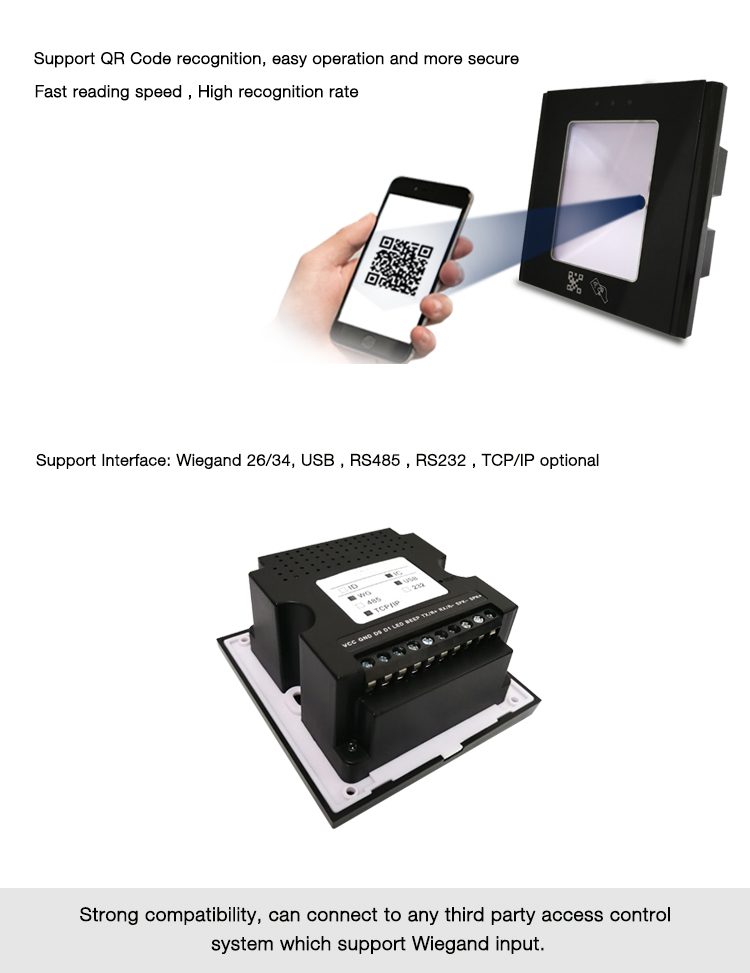

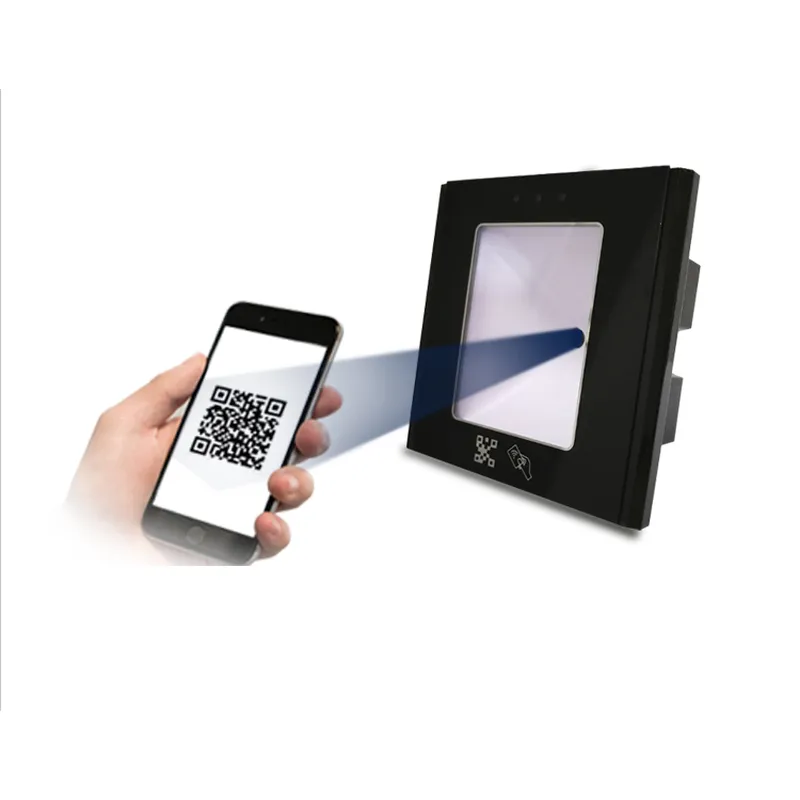

     ·   Support QR CODE /RFID card

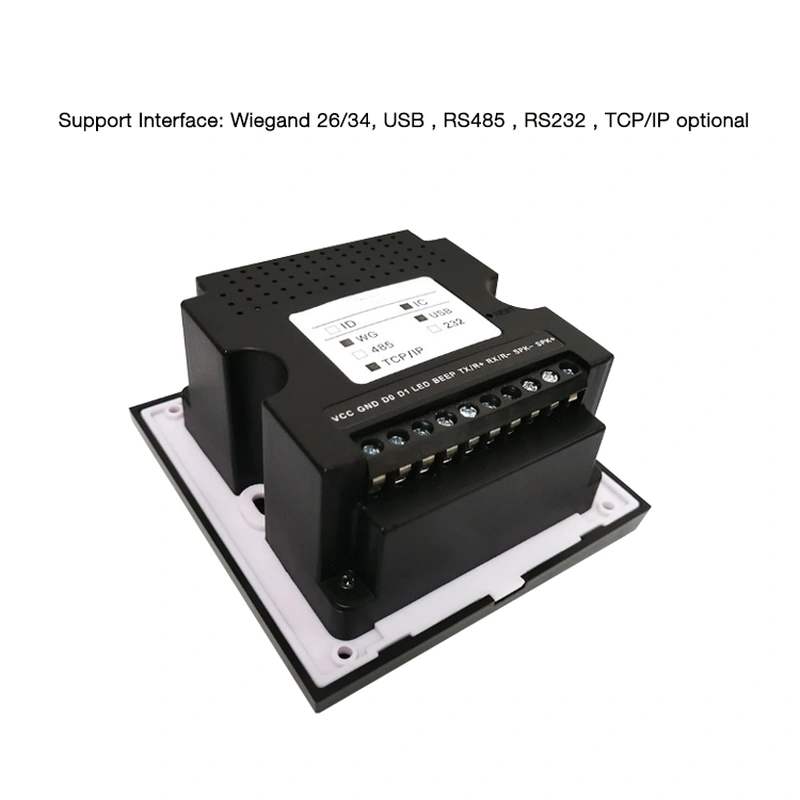

     ·   Wiegand  26~37

     ·   Buzzer and LED control

     ·   Specially suit for the government,enterprise,school,villa,smart building etc













Description

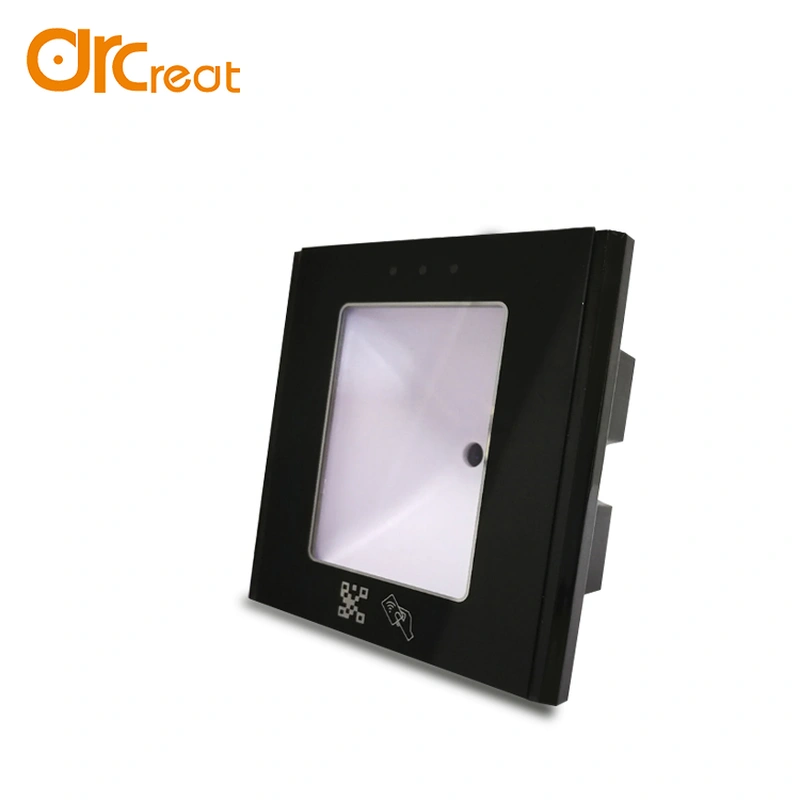

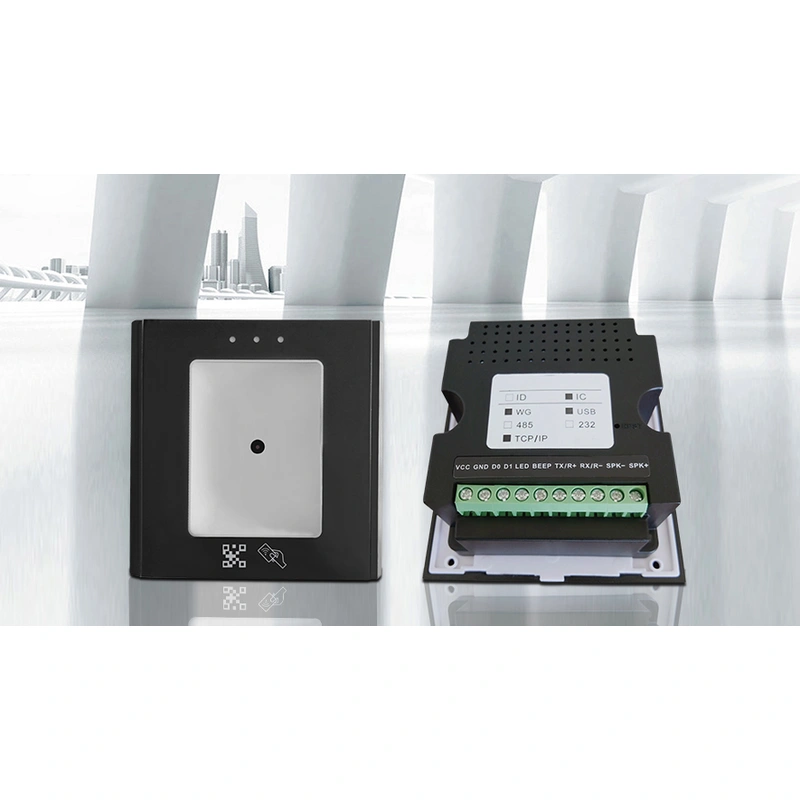

AR86 QR code access control card reader
Specifications
Input VoltageWide Range DC6-16V
Operating Current<30mA
Proximity CardEM Card&HID Card 125Khz
Reading range4-6cm
Wiegand rangeWiegand 26-37 input & output
Operating temperature-40~70℃
Operating Humidity10%-98%
Dimension86*86*42mm
