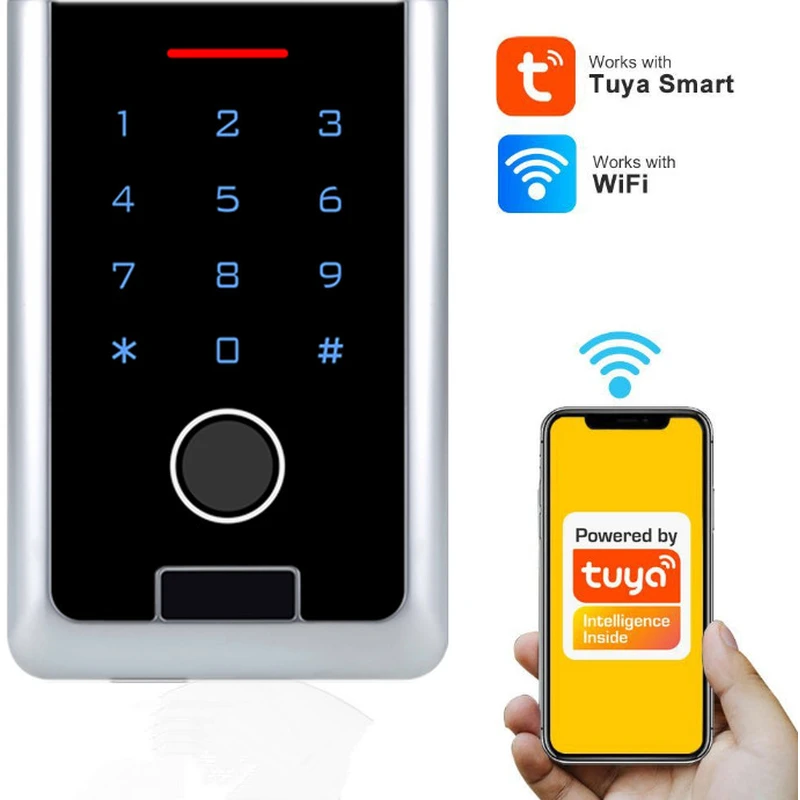

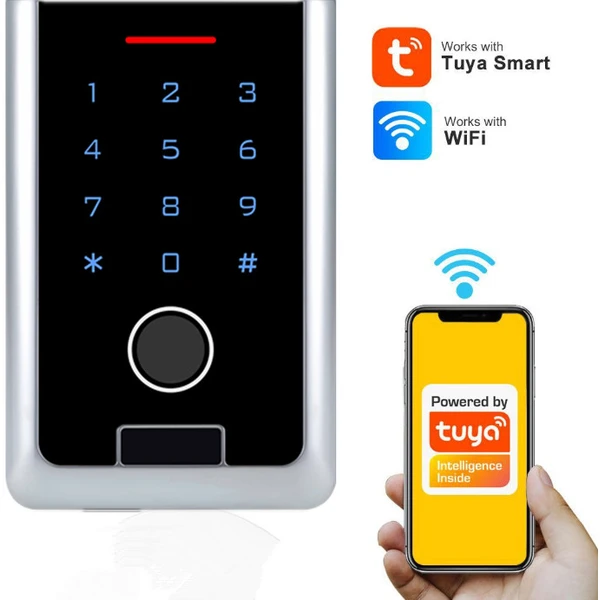

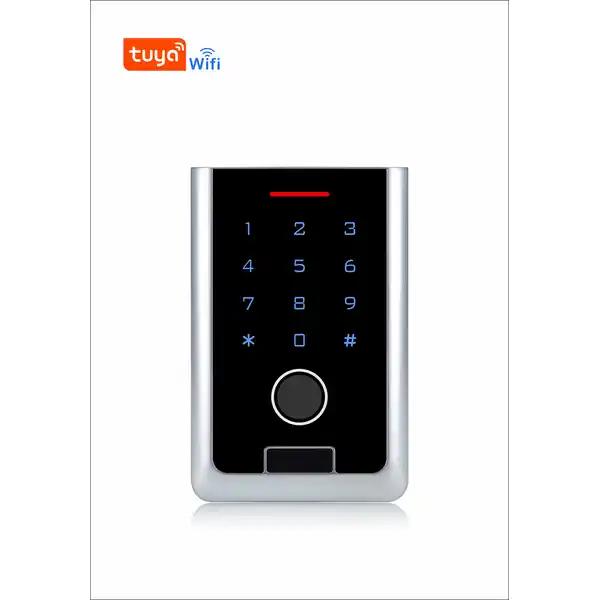

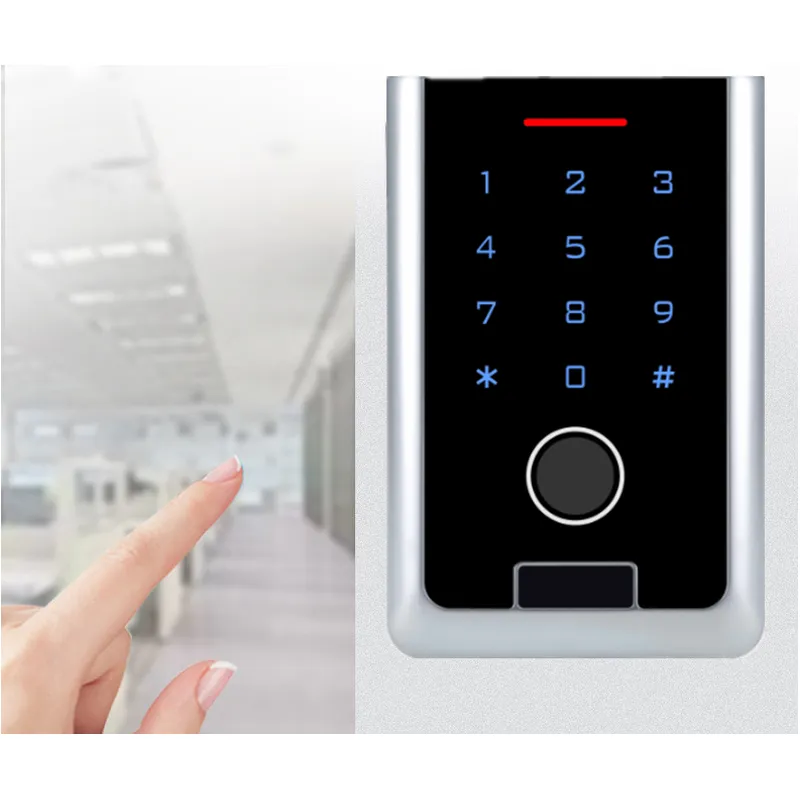

WIFI Touch Keypad Metal Waterproof Fingerprint Access Control/ Reader

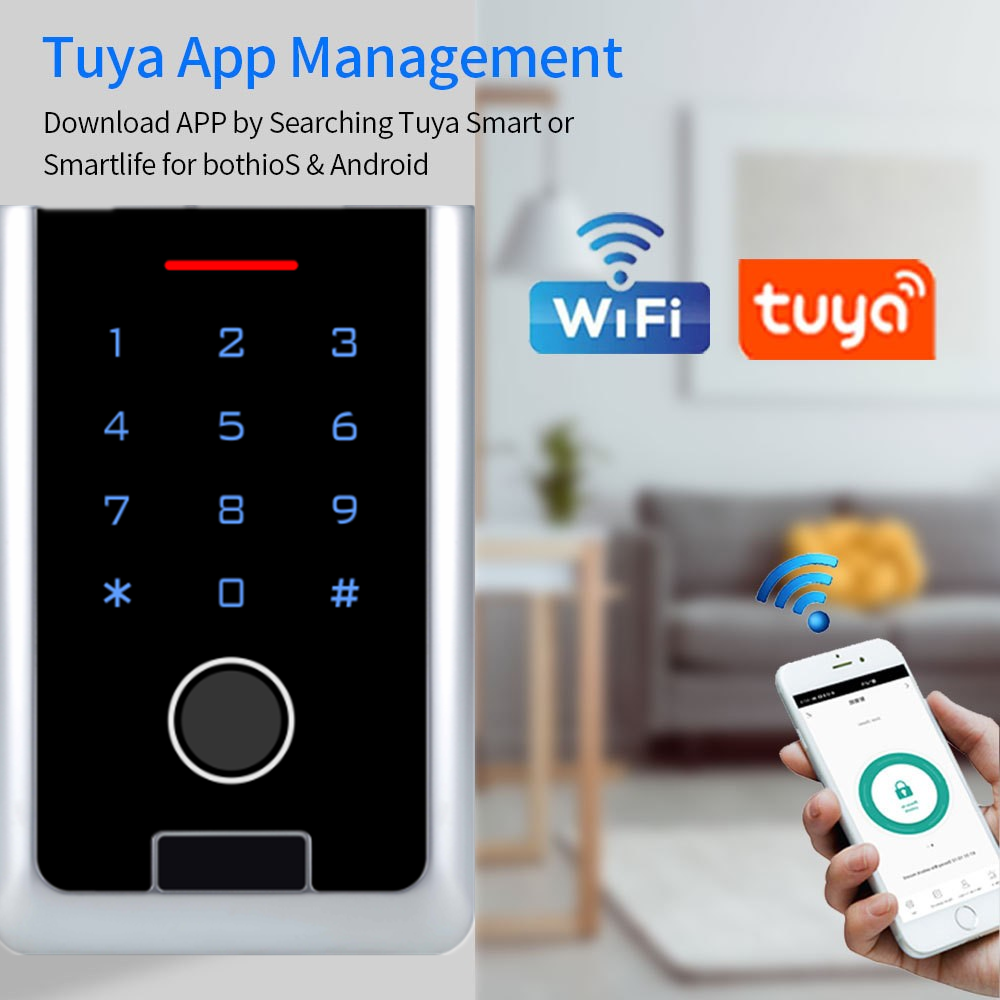

· Support TUYA APP

· Zinc alloy housing, anti-explosion

· Semiconductor fingerprint scanner

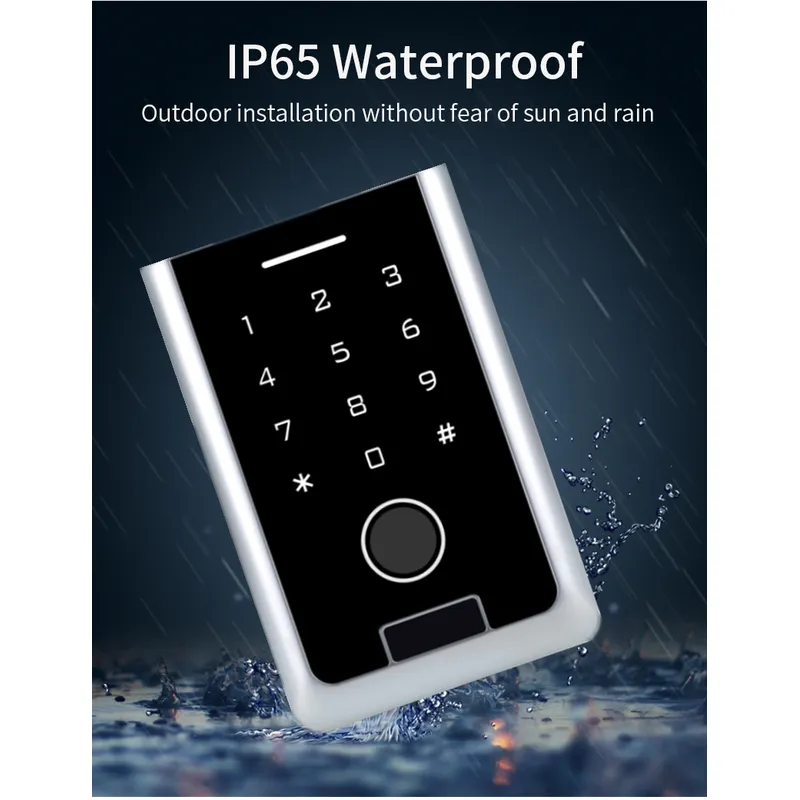

· Waterproof, confirms to IP66

· Allows entry via Fingerprint or proximity card（EM or Mifare or EM & HID )

· Support anti-tamper,door status detection, two door interlock,authority management

· Specially suit for the government,enterprise,bank,smart building,school etc

HF5 WIFI Fingerprint Access Control
Specifications
Input Voltage				Wide Range DC10-24V
Operating Current				≤120mA
User Capacity				200 fingerprint users & 400 card users
Proximity Card				EM Card 125Khz/13.56mhz Mifare
Reading range				4-6cm
Wiegand range				Wiegand 26 input & output
Operating temperature				-40~70℃
Operating Humidity				10%-98%
Dimension				L115 x W76 x H25(mm)
