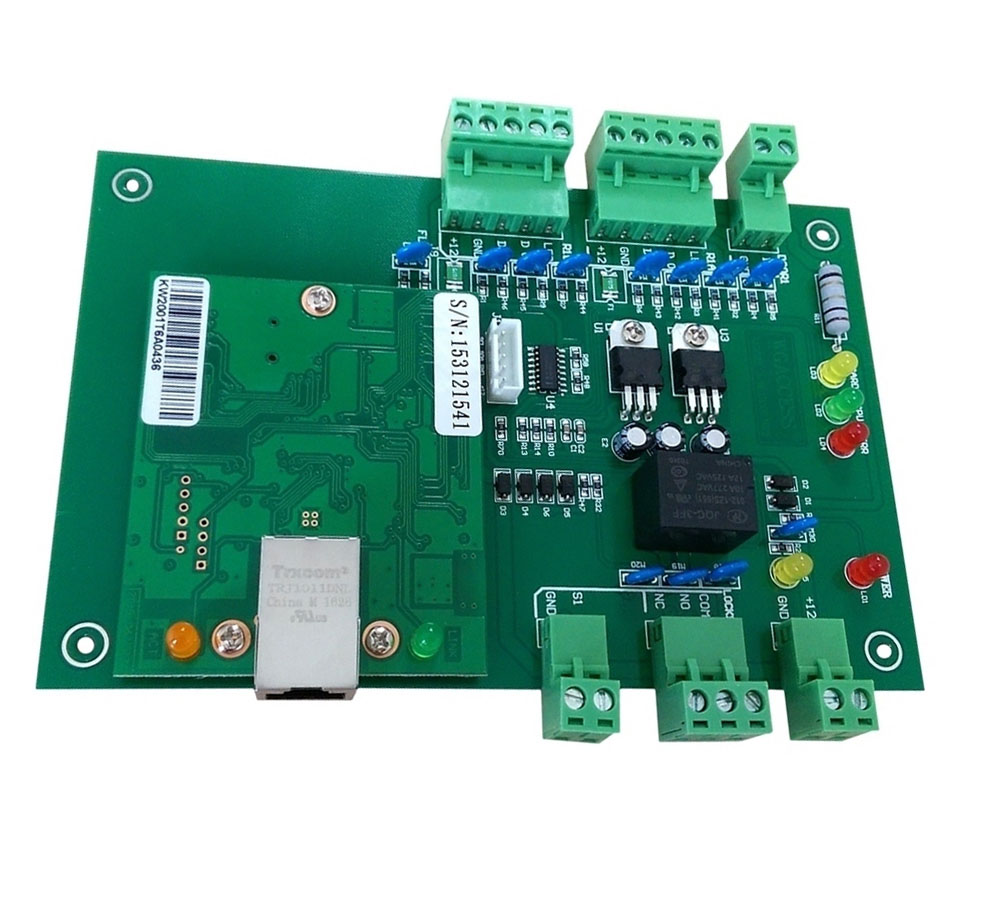

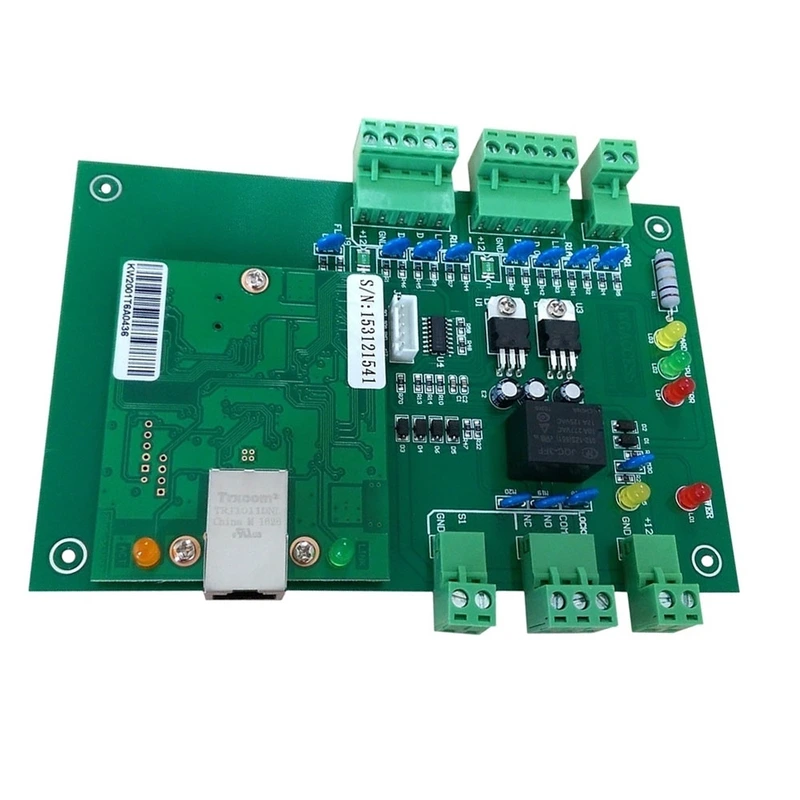

One Door TCP IP Network access control board

· TCP/IP access controller mother board for one door in and out

· Support one reader & one exit button or two readers

· Large user capacity: 20,000

· Event log :100,000pcs ( can be saved on controller permanently )

· Free software and SDK

· Specially suit for the government,enterprise,school,smart building etc

AT8001 TCP/IP access controller board with metal housing
Specifications
Input Voltage				Wide Range DC12V
Operating Current				≤120mA
Communication standard				TCP IP
Way of opening door				Card;card+PIN;multi-cards;first card etc
Reading range				4-6cm
Wiegand range				Wiegand 26 -6
Operating temperature				-40~70℃
Operating Humidity				10%-98%
Dimension				21.9×12.2×3.4mm

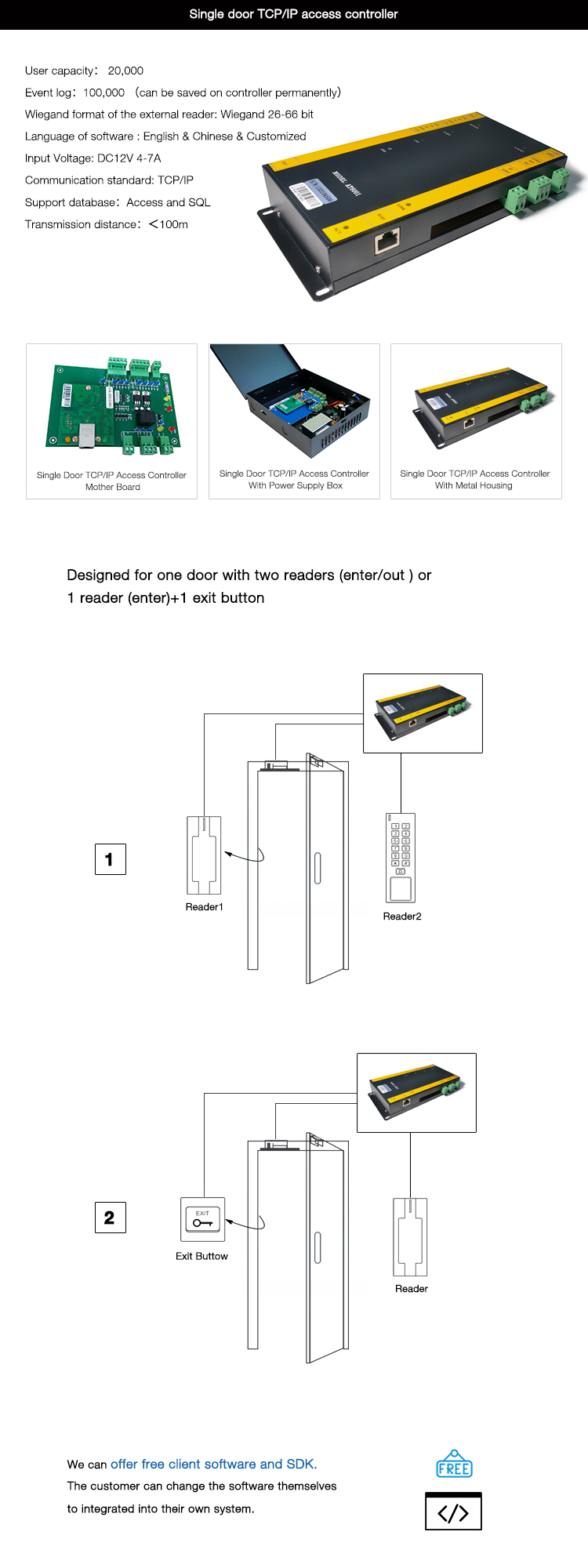

单门联网控制器详情图 1.jpg
