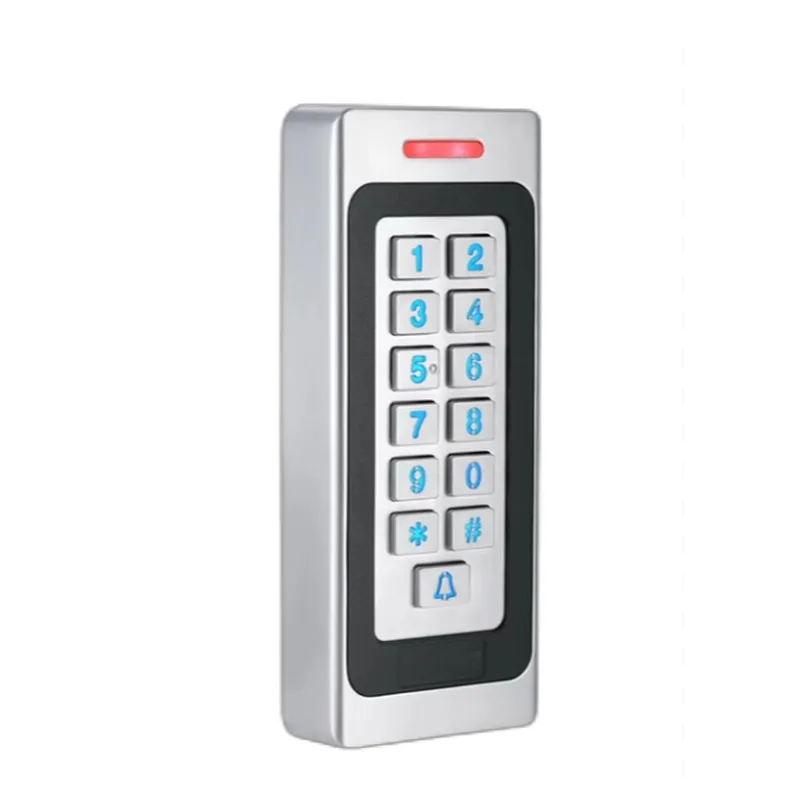

125KHZ 13.56MHZ Metal Waterproof IP67 PIN code RFID card reader

  • Metal housing

  •  Waterproof IP67

  •   Support EM/Mifare card

  •     Wiegand format can be set

  •      Factory default wiegand 26   (27-42 can be customized )

  •    Pin 4bit/8bit/Virtual card No.output

  •    DC10-24V -40℃~60℃

  •    Dimension:131*54*20mm











inquiry

Description


A6-R 125KHZ 13.56MHZ Metal Waterproof IP67 PIN code RFID  card reader
Specifications
Input VoltageWide Range DC10-24V
Operating Current≤80mA
Proximity CardEM Card 125Khz&Mifare 13.56Mhz(UID 4 bytes,7 bytes,Plus)
Reading range4-8cm
Wiegand rangeWiegand 26-37 input & output
Operating temperature-40~70℃
Operating Humidity10%-98%
Dimension131*54*20mm

AD6-EM 6(1).jpg
