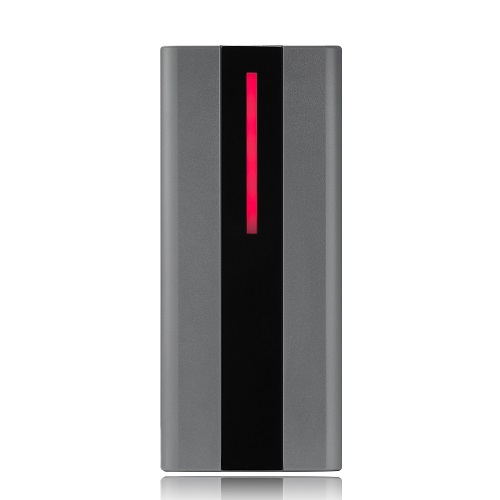

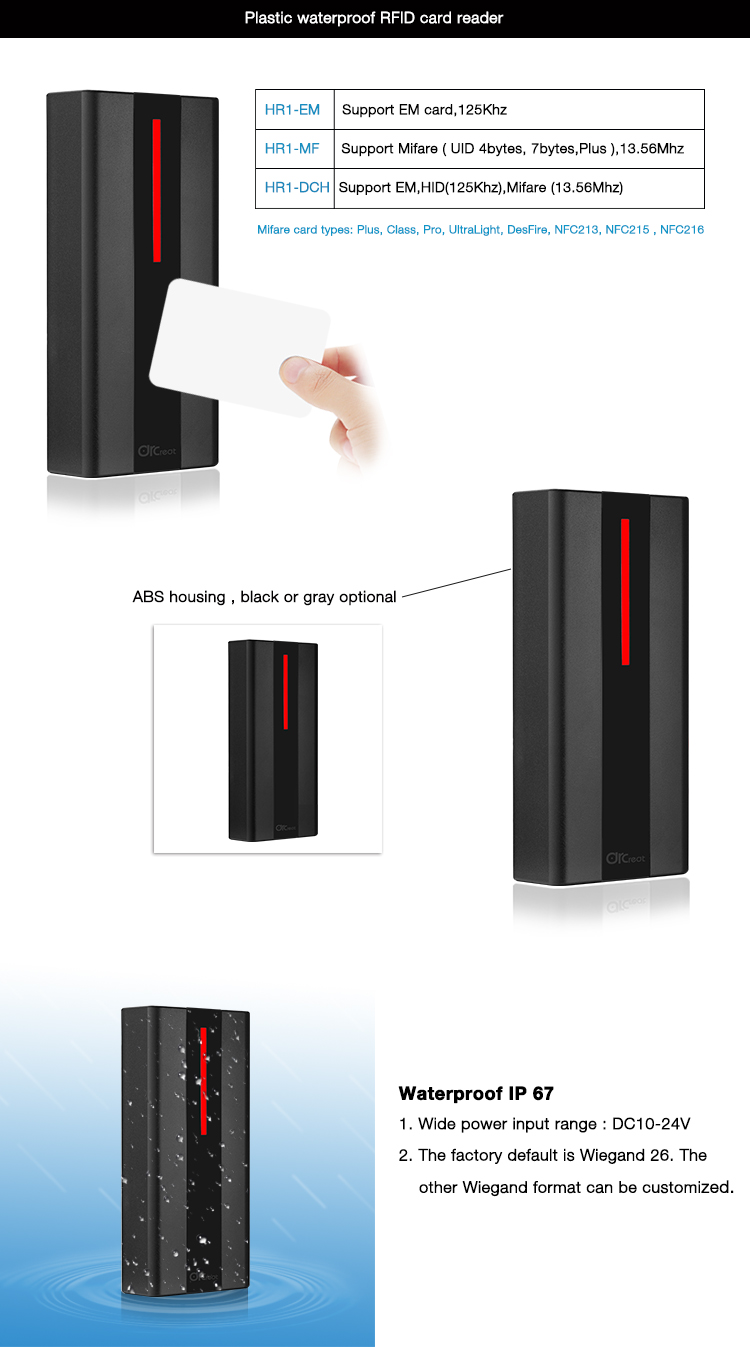

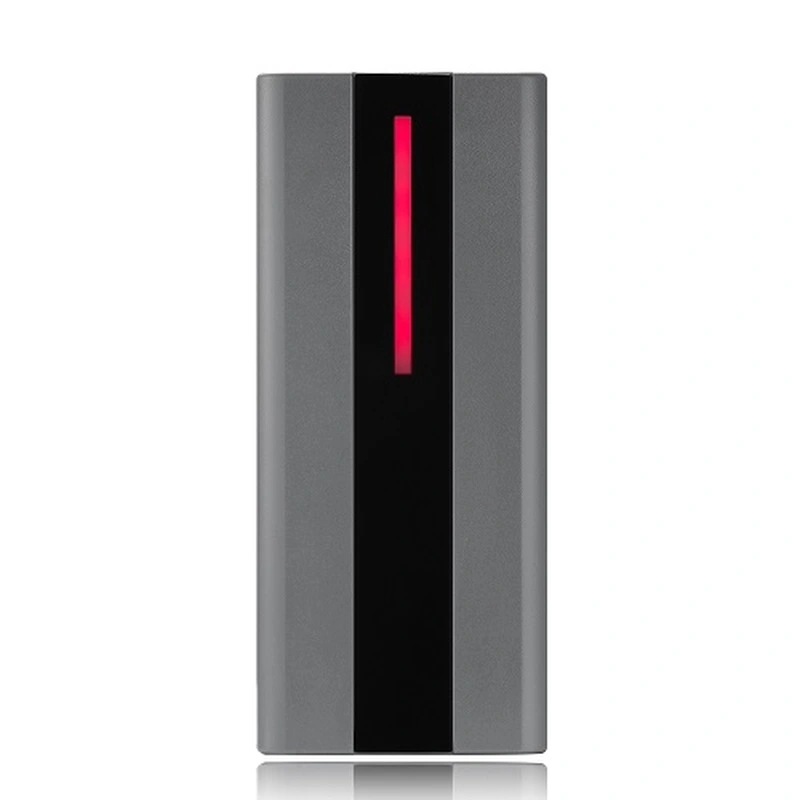

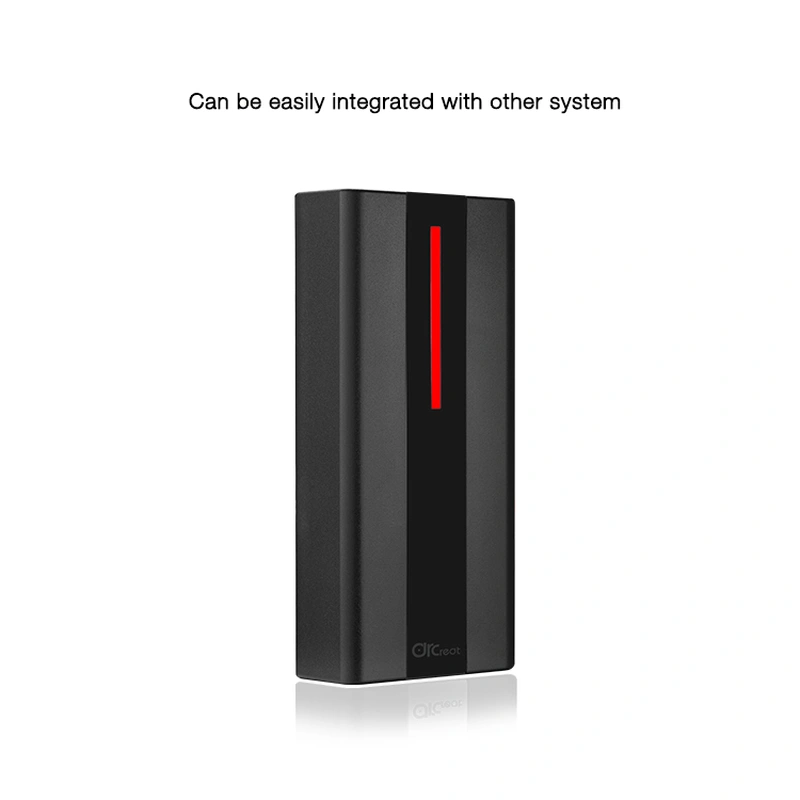

125khz 13.56MHZ Dual frequency RFID Access Control Reader

· Plastic ABS thickened housing, classic and cost effective

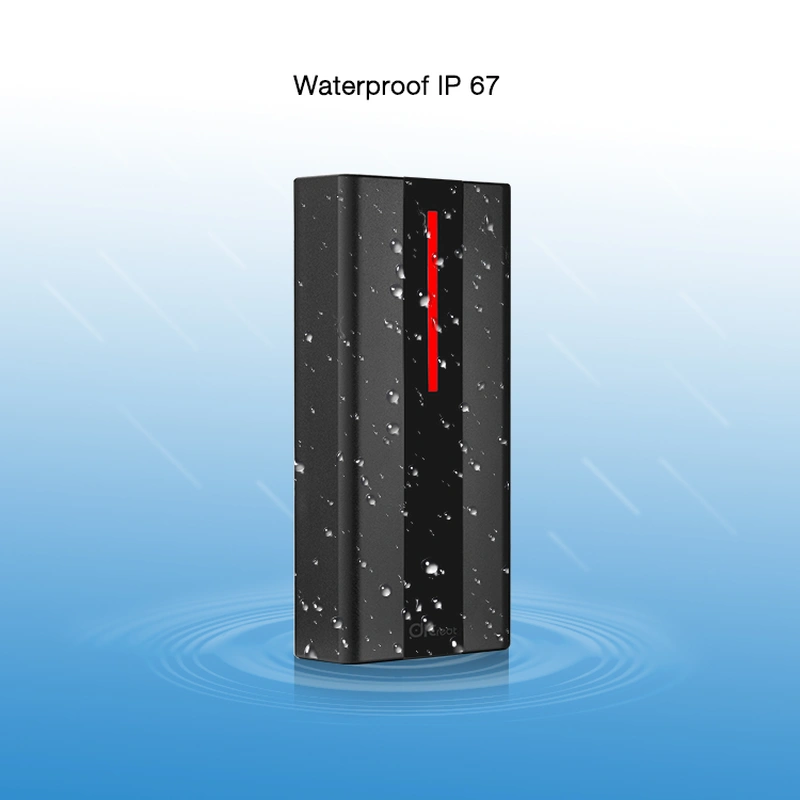

· Waterproof, confirms to IP67

· Wiegand 26 ~37

· Support EM card 125Khz or Mifare card 13.56Mhz

· Support EM&HID&Mifare card

· Specially suit for the government,enterprise,bank,smart building,jail,school etc

HR1 EM+HID+MF Plastic ABS Waterproof Proximity Card Reader
Specifications
Input Voltage				Wide Range DC10-24V
Operating Current				≤80mA
Proximity Card				EM Card 125Khz&Mifare 13.56Mhz(UID 4 bytes,7 bytes,Plus)
Reading range				4-8cm

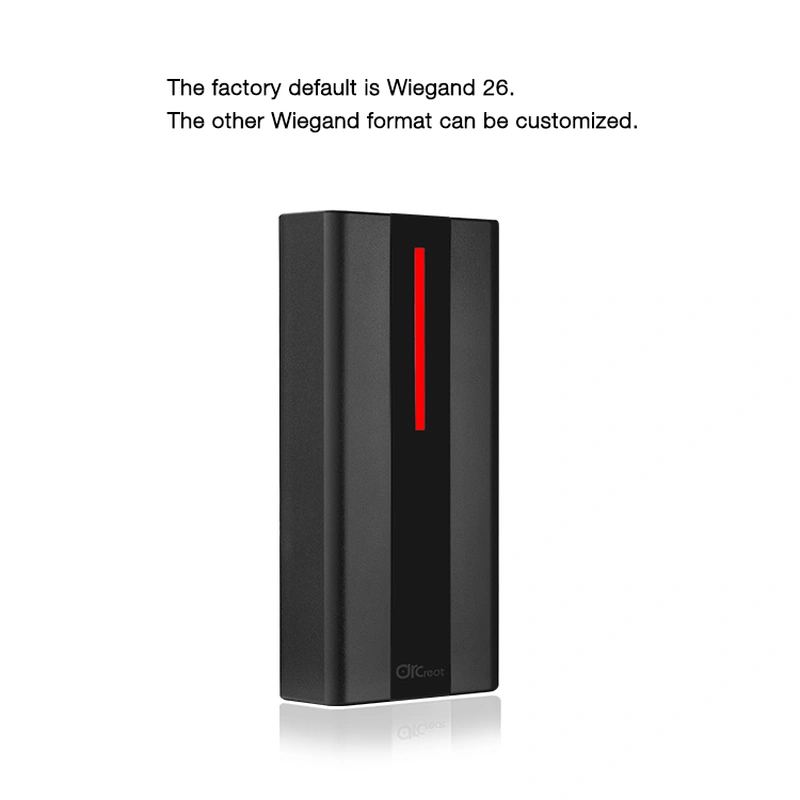

Wiegand range				Wiegand 26-37 input & output
Operating temperature				-40~70℃
Operating Humidity				10%-98%
Dimension				100×43×20mm
